In areas with frequent lightning activity, the ground potential rise caused by the grounding system enduring lightning current can lead to instantaneous elevation of the ground potential, forming a ground potential counterstrike phenomenon. This counterstrike poses a serious threat to systems like communication, power, automation, and may even result in equipment breakdown, signal interruption, and system paralysis. In response to the hazards caused by ground potential counterstrike and ground potential rise, modern lightning protection systems should adopt the following systematic protective measures:
Install Ground Potential Counterstrike Inhibitors

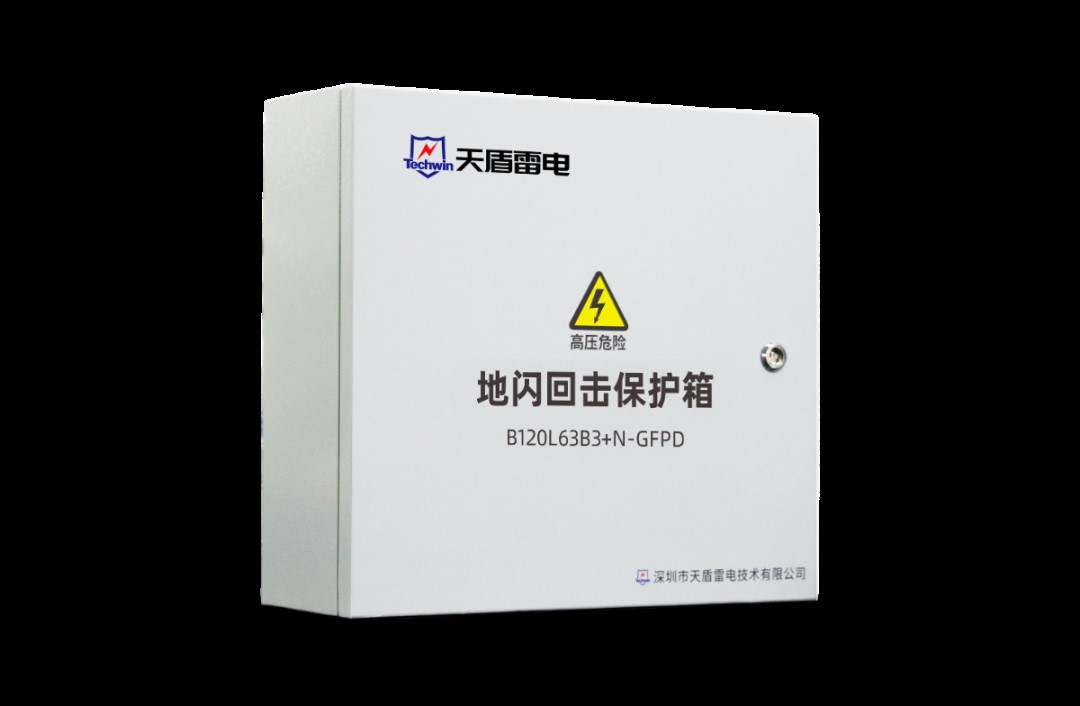

Ground lightning counterstrike protection cabinets (ground potential counterstrike inhibitors) are currently the key equipment for dealing with sudden ground potential surges. They use high-impedance nanomaterial technology to block lightning surge pulses and direct the current into grounding devices through discharge units, preventing lightning current from backfiring into equipment via the ground network.
Implement "Three Grounds Separation" Grounding Scheme
Rationally plan the grounding system structure and implement the grouped design of lightning protection ground, working ground, and protective ground. This helps to reduce coupling interference between ground potentials and avoid lateral transmission of lightning energy within the system. Particularly in critical locations, it is recommended to use a zoned grounding and equipotential connection method to enhance overall electromagnetic compatibility.
Introduce Intelligent Monitoring Technology
Through intelligent monitoring, real-time surveillance of the operational status of ground lightning counterstrike protection devices, grounding status, counterstrike occurrences, energy, temperature changes, and other parameters can be achieved. This enables early warning and dynamic adjustment before ground potential anomalies occur.
Optimize Grounding Structure
In locations with poor geological conditions where grounding resistance fails to meet standards, the system structure can be optimized using new devices such as ground lightning counterstrike protection cabinets, reducing dependence on traditional large-volume ground networks.
Build a Closed-loop Protection, Coordinate Lightning Protection System Operation
A comprehensive lightning protection system requires not only external and internal lightning prevention measures but also a complete system that includes direct lightning protection, grounding network, shielding, equipotential bonding, and proper surge protectors. It should also consider collaborative measures against ground potential rise. The ground lightning counterstrike protection cabinet, serving as a crucial defense device, forms an integrated system protection scheme with other lightning protection measures, creating a full-link barrier from sky to ground, establishing a true "closed-loop" lightning protection.
Ground potential rise is an essential hidden hazard in lightning protection. Only by forming a united front in system architecture, equipment configuration, real-time monitoring, and grounding strategies can the risk of counterstrike be fundamentally reduced, thereby constructing a more reliable security foundation for critical infrastructure.
